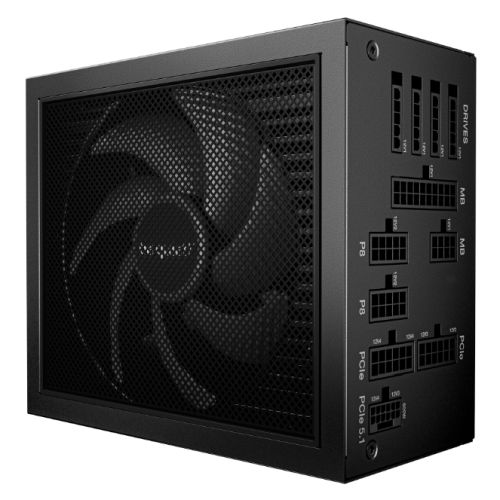

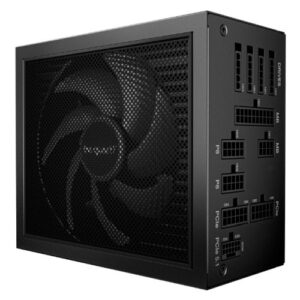

Be Quiet! 850W Dark Power 14 PSU, Fully Modular, 80+/Cybenetics Titanium, Active/Semi-Passive Cooling, LLC Full-Bridge, ATX 3.1, PCIe 5.1

Description

Description

Specification

• Form Factor: ATX
• Series: Be Quiet! Dark Power 14
• Wattage: 850 W
• Modular: Fully Modular
• Compatibility: ATX 3.1
  PCIe 5.1
  EPS 12V Version 2.92
• #Hide#Wattage Range: 800 – 860W
• Connectors: 1 x ATX-Motherboard (20+4-pin)
  1 x P4+4 (CPU)
  1 x P8 (CPU)
  1 x 12V-2×6 cables
  4 x PCI-e 6+2-pin (GPU)
  13 x SATA
  2 x PATA
• Rail Design: Multi-rail Operation: 4 12V Rails
  Manually switch between multi-rail and single-rail mode
• AC Input: AC 100-240 V
• Fan Type: 135mm Silent Wings Fan
• Fan Bearing: Fluid / Hydraulic Bearing
• Noise: Cybenetics Noise Rating: Titanium

  dB(A) at 10% load: 7.7
  dB(A) at 20% load: 7.7
  dB(A) at 50% load: 7.9
  dB(A) at 100% load: 16

• Max Certification: Titanium
• Efficiency: “Up to 95.57%
  80 PLUS and Cybenetics Titanium

  230V, 2% load: 71.4%
  230V, 10% load: 91.5%
  230V, 20% load: 94.4%
  230V, 50% load: 95.6%
  230V, 100% load: 93.8%”

• MTBF: “>100,000 Hours”
• Protection: OTP (over temperature protection)
  OCP (over current protection)
  OPP (over power protection)
  SCP (short circuit protection)
  OVP (over Voltage protection)
  UVP (under Voltage protection)
  SIP (Surge & Inrush protection)
• #Hide#ATX 3.1/3.0: ATX 3.1
• Colour: Black
• Additional Features: See Overview
• Package Contents: Screws
  Cable ties
  User manual
• Weight/Dimensions: 2.2 kg
  (LxWxH) 175 x 150 x 86 mm
• Package Weight: To be confirmed
• Warranty: 10 Years
