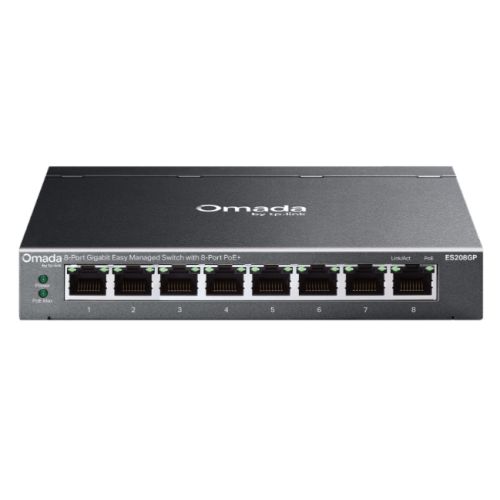

TP-LINK (ES208GP) Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+, Fanless, Metal Casing

Description

Description

Specification

• Rackmountable: No
• Managed: Yes
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 8 x 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
  PoE Ports: 8 ports
  PoE Budget: 64W available for all PoE+ ports, 30W max per port
  Remote Camera Reboot
  Up to 820ft (250m) PoE transmission distance”
• Switching Capacity: 16 Gbps
• Power Supply: DC Power Adapter (Output: 53.5V DC / 1.31A)
• Dimensions: 158 x 100.7 x 25.4 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 11.904 Mpps
• Jumbo Frame: 15 KB
• Additional Features: Fanless
  Durable metal casing
  Desktop/wall mounting design
  Physical security lock
• Quality of Service: 802.1p DSCP Priority
  8 Priority Queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Storm Control
• Layer Features: L2 Features:
  Link Aggregation
  Loopback Detection
  Flow Control
  Mirroring
  Port Statistics
  802.1ab LLDP

  L2 Multicast:
  IGMP Snooping

• VLAN: MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
• Management: “Omada App:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Centralized Management:
  Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller

  Cloud Access:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Zero-Touch Provisioning:
  Requires the use of Omada Cloud-Based Controller”

• .:
  Management Features:
  Web-based GUI
  DHCP Client
  Cable Diagnostics
• Environment: Operating Temperature: 0°C ~40°C
  Storage Temperature: -40°C ~70°C
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: ES208GP
  Power Adapter
  Power Cord
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 0.9900 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
