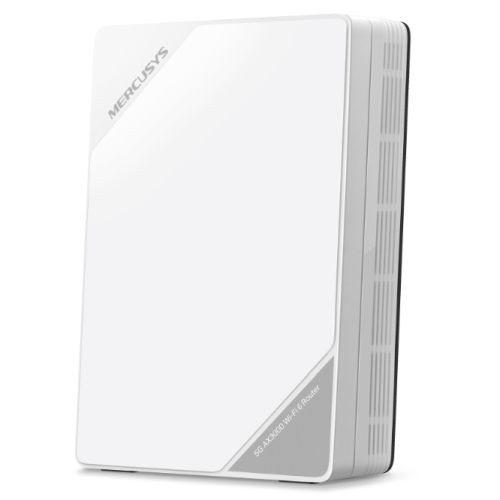

Mercusys (MB520-5G) 5G AX3000 Wireless Dual Band Router, 2.5G WAN/LAN, Phone Port, EasyMesh Compatible

Description

Description

Specification

• Type: 5G Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 2.5 Gbps
• Bands: Dual Band
• Signal Rate: 2.4 GHz: up to 574 Mbps
  5 GHz: up to 2402 Mbps
  5G: 4.67/1.25Gbps DL/UL
• Interface(s): 1 x 2.5 Gbps LAN/WAN Port
  1 x Gigabit LAN Port
  1 x RJ11 Phone Port
  2 x 5G/4G External Antenna Ports
  1 x Nano SIM Card Slot
• Standards: “Wireless Standards: IEEE 802.11ax/ac/a/b/g/n
  NR Standard: 4.67/1.25Gbps DL/UL
  LTE Standard: Cat 19, 1.6Gbps/200Mbps DL/UL
  “
• Frequency: 2.4 GHz and 5 GHz
• Button(s): “WPS, Reset Button”
• Power Supply: External Power Supply: 12V/2A
• Antenna(s): Internal Antenna
• Dimensions: 190 x 130 x 69.7 mm
• Wireless Features: “Smart connect
  WPS
  Wireless Schedule
  Wireless Clients Statistics
  Easymesh
  Multi-SSID
  Working Modes: 5G/4G/3G Router, Wireless Router
  EasyMesh-Compatible”
• Security: WPA-PSK / WPA2-PSK / WPA3-SAE
  IPv4 SPI Firewal
  Service Filtering
  Access Control
  IP & MAC Binding
  IPv6 Firewall
  Parental Controls
  Guest Network
• DHCP: DHCP Server
  IP address assignment (DHCP)
• Port/NAT Forwarding: ALG
  Virtual Server
  Port Triggering
  UPnP
  DMZ
• VPN Support: Open VPN
  PPTP VPN
  IPSec VPN
• Management: MERCUSYS APP
  Web GUI
• Dynamic DNS: DynDns
  NO-IP
• USB Application: –
• Additional Features: See Overview
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~60°C (-40°F~140°F)
  Operating Humidity: 10%~90%RH
  Storage Humidity: 5%~90%RH
• Package Contents: 5G AX3000 Wireless Dual Band Router (MB520-5G)
  Power Adapter
  RJ45 Ethernet Cable
  RJ11 Phone Cable
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.0500 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)1
