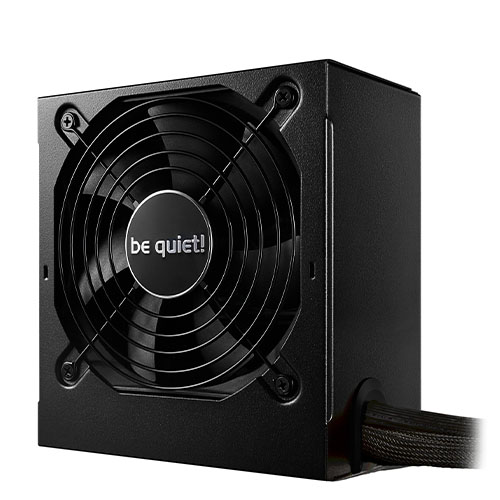

Be Quiet! 550W System Power 10 PSU, 80+ Bronze, Fully Wired, Strong 12V Rail, Temp. Controlled Fan
£40.30 (£48.36 Inc VAT)
Availability: Out of stock
SKU: PSU-550BQSP10
- Description
- Additional information
Description
Description
Specification
- Form Factor: ATX
- Series: Be Quiet! System Power 10
- Wattage: 550 W
- Modular: Fully Wired
- Compatibility: ATX 12V v2.52
EPS 12V v2.92 - #Hide#Wattage Range: 450 – 560W
- Connectors: 1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
1 x PATA
6 x SATA - Rail Design: Single strong 12V-rail
- AC Input: 200-240 Vac
- PFC: Active PFC
- Fan Type: Temperature-controlled 120mm quality fan
- Fan Bearing: Ball Bearing
- Noise: 20% load: 8.6 dB(A)
50% load: 9.4 dB(A)
100% load: 25.7 dB(A) - 80+ Certification: 80+ Bronze
- Efficiency: “230V, 20% load: 87.4%
230V, 50% load: 89.1%
230V, 100% load: 85.7%” - MTBF: “100,000 hours”
- Protection: OCP (over current protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
SIP (Surge & Inrush Protection) - Additional Features: See Overview / Video
- Package Contents: Screws
Manual - Weight/Dimensions: 1.83 kg
(LxWxD) 150 x 140 x 86 mm - Package Weight: 2.5000 kg
- Warranty: 5 Years
