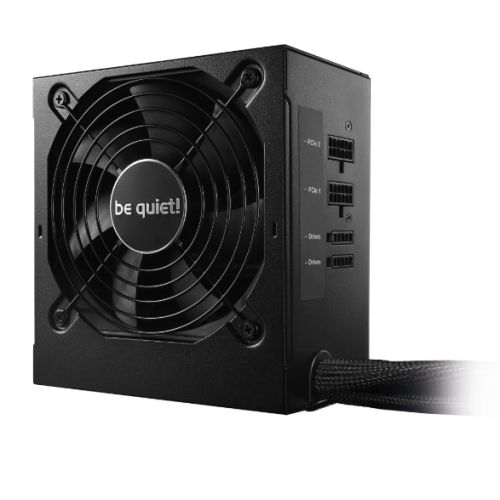

Be Quiet! 500W System Power 9 CM PSU, Semi-Modular, Sleeve Bearing, 80+ Bronze, Dual 12V, Cont. Power

Description

Description

Specification

• Form Factor: ATX
• Series: Be Quiet! System Power 9
• Wattage: 500 W
• Modular: Semi Modular
• Compatibility: ATX 12V v2.51
• #Hide#Wattage Range: 450 – 560W
• Connectors: “1 x ATX-Motherboard (20+4-pin)
  1 x P4+4 (CPU)
  2 x PCI-E 6+2-pin (GPU)
  2 x PATA 4-pin
  6 x SATA 15-pin (HDD, Drives)
  1 x FDD”
• Rail Design: Dual +12V
• AC Input: AC200-240 V
• PFC: Active PFC
• Fan Type: High-quality 120mm fan
  Sleeve Bearing
• Fan Bearing: Sleeve Bearing
• Noise: dB(A) at 20% load: 9.7
  dB(A) at 50% load: 11.5
  dB(A) at 100% load: 24.4
• 80+ Certification: 80+ Bronze
• Efficiency: Up to 88%
• MTBF: “100,000 hours”
• Protection: Over current
  Over voltage
  Under voltage
  Short circuit
  Over temperature
  Over power
• Additional Features: See Overview
• Weight/Dimensions: 1.56 kg
  140 x 150 x 86 mm
• Package Weight: 2.4000 kg
• Warranty: 3 Years
