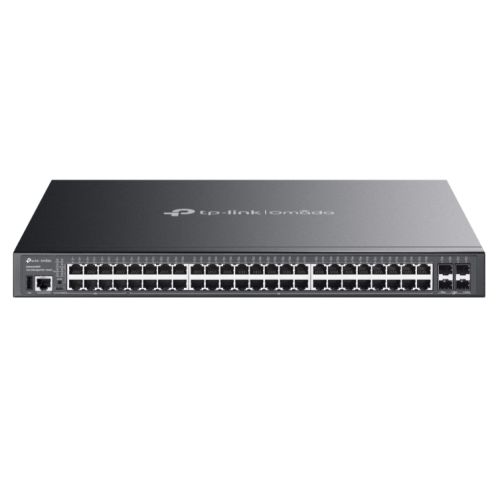

TP-LINK (SG5452XMPP) Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots, Rackmountable

Description

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 48
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): “48 x 10/100/1000 Mbps RJ45 Ports (8x PoE++, 40× PoE+)
  4 x 1/10 Gbps SFP+ Slots
  1 x USB 2.0 Port
  1 x RJ45 Console Port
  1 x USB Type-C Console Port”
• PoE Ports (RJ45): Standard: 802.3af/at/bt compliant
  PoE++ Ports: Ports 1~8 (up to 90W per Port)
  PoE+ Ports: Ports 9~48 (up to 30W per Port)
  Power Budget: 770W
  Fast PoE
  Perpetual PoE
• Switching Capacity: 176 Gbps per Unit
• Power Supply: 100-240 V~ 50/60 Hz

  Max. Power Consumption:
  893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C)
  942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C)

• Dimensions: (WxDxH) 440 x 330 x 44 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: 130.94 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule

  ISP Features:
  802.3ah Ethernet Link OAM
  L2PT (Layer 2 Protocol Tunneling)
  Device Link Detect Protocol (DLDP)
  DDM
  sFlow

• Quality of Service: Class of Service
  Bandwidth Control
  Voice VLAN
  User-Defined OUI
  Smoother Performance
  Action for Flows
• Layer Features: “L3 Features:
  IPv4: Max 128, IPv6: Max 128
  Static Routing
  Host Route Table: Max 1,024 entries
  RIP: Version v1/v2, Max 1,796
  OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
  Static ARP: 512 static entries
  Dynamic ARP: 2,000 dynamic entries
  Proxy ARP
  DHCP Server
  DHCP Relay

  “

• .: L2 and L2+ Features:
  Link Aggregation
  Spanning Tree Protocol
  Port-based and VLAN-based Loopback Detection
  802.3x Flow Control
  ERPS
  Mirroring
  RSPAN
  MAC Address Table
  Multicast
• VLAN: “Max 4K VLAN Group (802.1q VLAN)
  802.1Q Tagged VLAN
  MAC VLAN Entries: 60
  Multicast VLAN
  Management VLAN
  VLAN VPN (QinQ): Max 256 entries
  GVRP
  Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
  Voice VLAN
  Private VLAN”
• Security: Port Isolation
  CPU-Defend
  ARP Inspection (Dynamic ARP Inspection)
  DoS Defend
  IP-MAC-Port Binding
  IPv6-MAC
  DHCP Filter
  Static/Dynamic Port Security
  Broadcast/Multicast/Unknown-unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv2
  IP/Port/MAC-based access control
• Management: “Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Web-based GUI
  Command Line Interface (CLI) through console port, telnet
  SNMPv1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP Auto Install
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  Password Recovery
  SNTP
  System Log
  IEEE 802.3az Energy Efficient Ethernet (EEE)”

• Environment: Operating Temperature: -5–40°C
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: SG5452XMPP Switch
  Power Cord
  Console Cable
  Rackmount Kits
  Rubber Feet
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 6.8700 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
