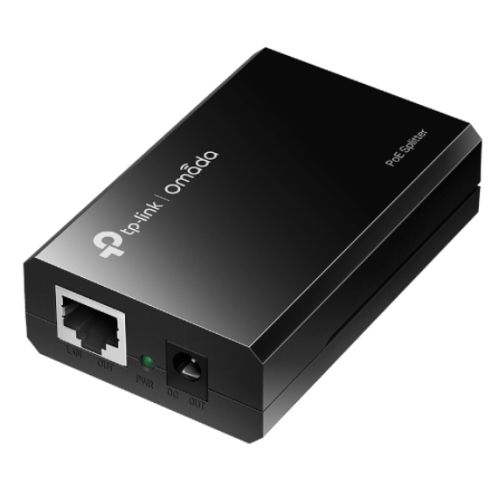

TP-LINK (POE10R) Omada PoE Splitter, IEEE 802.3af Compliant, Selectable Power Output, Gigabit Support, Plug-and-Play

Description

Description

Specification

• Interface(s): 2 x 10/100/1000Mbps RJ45 Port
  Auto Negotiation/Auto MDI/MDIX
  1 x Power Output Port
• #Hide#Type: PoE Splitter
• Network Media: “10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ohms STP (Max 100m)

  100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ohms STP (Max 100m)

  1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)”

• Dimensions: 80.8 x 54 x 24 mm
• LED Indicator: PWR
• Power Supply: “12VDC 1A, 9VDC 1A, 5VDC 2A”
• Output Power For PoE Splitter: Selectable Power Output
• Basic Function: “Compatible With IEEE 802.3af Compliant PSEs
  Delivers Power Up To 100 Meters
  Optional 12VDC, 9VDC or 5VDC Power Output”
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: POE10R
  Power Cord
  Installation Guide
• Package Type: Retail
• Package Weight: 0.2400 kg
• Warranty: 2 Years
