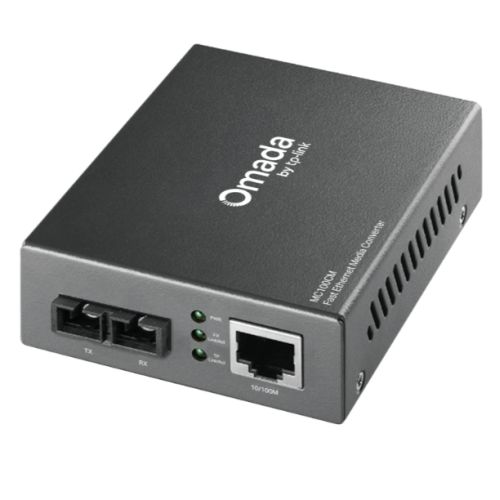

TP-LINK (MC100CM) Omada 10/100Mbps Multi-Mode Media Converter, up to 2km

Description

Description

Specification

• Type: Multi-Mode Media Converter
• Enclosure Type: External
• Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  Full Duplex Flow Control (IEEE 802.3x)
  Half Duplex Flow Control (Backpressure)
  Extends fiber distance up to 2km
• Ports: 2 x100M SC/UPC ports
  1 x 10/100M RJ45 port (Auto MDI/MDIX)
• Standards and Protocols: “IEEE802.3i, IEEE802.3u”
• Wave Length: 1310nm
• Network Media 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (<100m)
• Network Media 100BASE-T: 2-pair UTP/STP of Cat. 5 or above (<100m)
• Transmission Distance: 2km
• LED Indicators: “PWR, FX Link/Act, TP Link/Act”
• Dimensions (WxDxH): 94.5 x 73.0 x 27.0 m
• Power Supply: 9V/0.6A
  Max. Power Consumption: 1.19W
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: MC100CM
  Power Adapter
  Installation Guide
• Package Type: Retail
• Package Weight: 0.5000 kg
• Warranty: 2 Years
