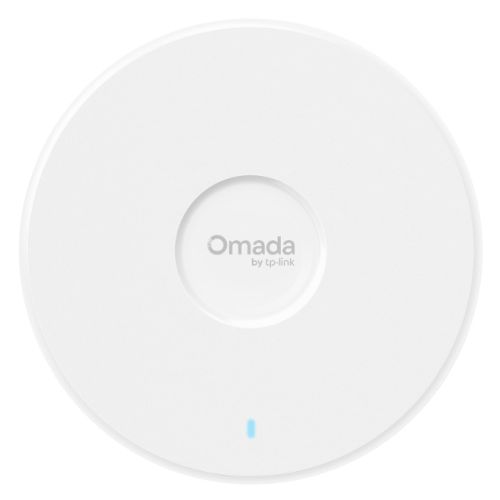

TP-LINK (EAP787) BE12000 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE++, 10GB Port, Omada Mesh, MLO, Multi-RUs

Description

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11be (Wi-Fi 7)
• Bands: Tri Band
• Wi-Fi Rating: BE12000
• Max Single Band Wi-Fi Rate: 5765 Mbps
• Max Wired Transfer Rate: 10 Gbps
• Interface(s): 1 x 10G/2.5G Ethernet Port
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Antenna(s): 2.4 GHz: 2x 4.0 dBi
  5 GHz: 4x 5.0 dBi
  6 GHz: 2x 5.0 dBi
• Button(s): Reset
• Power Supply: 802.3bt/at PoE or 12V/2.5A DC
  NOTE: Power Adapter is NOT included.
• Power Consumption: “26.3 W (For PoE);
  22.4 W (For DC)”
• Dimensions: 220 x 220 x 38.8 mm
• Frequency: 2.4GHz: Up to 688 Mbps
  5GHz: Up to 5765 Mbps
  6GHz: Up to 5765 Mbps
• EIRP: “6-20 dBm (2.4 GHz, EIRP)
  9-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)
  9-30 dBm (5 GHz, U-NII-2C, EIRP)
  6-23 dBm (6 GHz, EIRP)”
• Wireless Functions: 320 MHz Bandwidth
  MLO
  4K-QAM
  Multi-RUs
  Seamless Roaming(802.11k/v/r)
  MU-MIMO
  Mesh
  BSS Coloring
  OFDMA
  Load Balance
  Band Steering
  Beamforming
  Airtime Fairness
  Multiple SSIDS:24(8 on each band)
  Wireless Schedule
  Reboot Schedule
  Rate Limit
  Static IP/Dynamic IP
  RADIUS Accounting
  MAC Authentication
• Security: “Captive Portal Authentication
  Access Control
  Mac Filter
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
• Wireless Range: 2050 ft2
• Quality of Service: QoS(WMM)
• Management: “Omada App
  Centralized Management
  Cloud Access
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  System Logging Local/Remote Syslog
  Web-based Management”
• Additional Features: “Bluetooth: 1 x 5 dBi (peak gain), Internal antenna module
  Mounting: Ceiling / Wall/ Junction Box Mounting (Kits Included)
  Concurrent Clients: 510+”
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: EAP787
  Installation Guide
  Ceiling/Wall/Junction Box Mounting Kit
  Note: Power Adapter is NOT included.
• Package Type: Retail
• Package Weight: 1.4900 kg
• Warranty: Limited Lifetime
