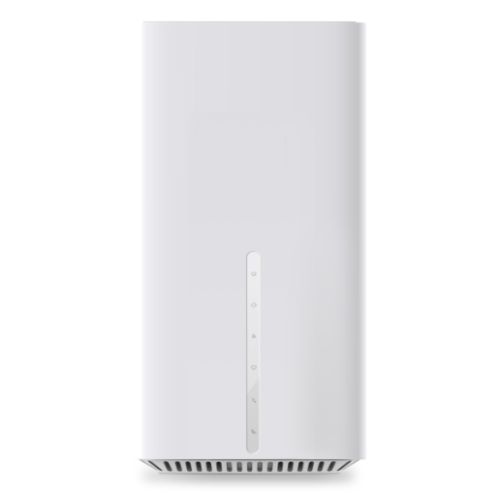

TP-LINK Aginet (EX530v) AX3000 Dual Band Wi-Fi 6 VoIP Router, EasyMesh, Remote Management, GB WAN/LAN, 1x Phone Ports, USB

Description

Description

Specification

• Type: VoIP Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 5 GHz: 2402 Mbps
  2.4 GHz: 574 Mbps
• Interface(s): 1 x 10/100/1000 Mbps RJ45 WAN
  3 x 10/100/1000 Mbps RJ45 LAN
  1 x Phone Port
  1 x USB 3.0
• Standards: IEEE 802.11 ax/ac/n/a 5 GHz
  IEEE 802.11 ax/b/g/n 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Button(s): “Power On/Off Button, Reset Button, WPS/Wi-Fi Button”
• Power Supply: External Power Supply: 12V/2.0A
• Antenna(s): Internal Antennas
• Dimensions: 99 x 99 x 190 mm
• Wireless Functions: “Enable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering”
• Security: Wireless Security: WPA/WPA2/WPA3 Encryptions
  IPv4/IPv6 SPI Firewall
  DDoS
  Service Filtering
  Access Control
  IP&MAC Binding
• DHCP: “DHCP Client, DHCP Server, DHCP Relay, Address Reservation, Condition Pool”
• Port/NAT Forwarding: “Virtual Server, Port Triggering, DMZ, ALG, UPnP”
• VPN Support: “PPTP, IPSec, OpenVPN”
• Management: “Local management:
  WebGUI, Aginet app (for end users)

  Remote management:
  Aginet ACS, TR-069, TR-181, TR-369, TR-111,TR-143 for service providers
  Aginet App for end user (need to log in with TP-Link ID and bind your device to it)

  Cloud management:
  TP-Link Aginet Unified Cloud (TAUC)”

• Dynamic DNS: “NO-IP, DynDNS”
• USB Application: “Samba, FTP, Media Server”
• Additional Features: “VoIP, Parental Controls, Firewall, Address Reservation, QoS (Quality of Service), CWMP, Network Diagnosis, Traffic Statistics,1024-QAM, MU-MIMO, OFDMA, Cloud upgrade”
• Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
  Storage Temperature: -40°C–60°C (-40°F –140°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: 1 x Wi-Fi 6 VoIP Router EX530v
  1 x Power Adapter
  1 x RJ45 Ethernet Cable
  1 x RJ11 Cable
  1 x Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.0600 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
