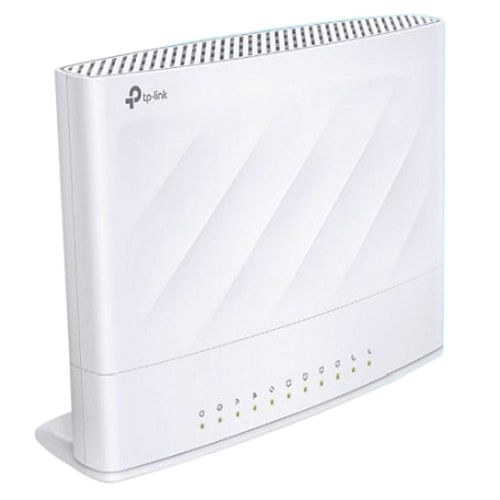

TP-LINK Aginet (EX520v) AX3000 Dual Band Wi-Fi 6 VoIP Router, VoIP Calls, EasyMesh, Remote Management, OFDMA, MU-MIMO

Description

Description

Specification

• Type: VoIP Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 5 GHz: up to 2402 Mbps
  2.4 GHz: up to 574 Mbps
• Interface(s): 1 x 10/100/1000 Mbps RJ45 WAN
  3 x 10/100/1000 Mbps RJ45 LAN
• Standards: IEEE 802.11a/n/ac/ax 5 GHz
  IEEE 802.11b/g/n/ax 2.4 GHz
• Frequency: 2.4 GHz and 5 GHz
• Button(s): “Power On/Off Button, Reset Button, Wi-Fi/WPS Button”
• Power Supply: External Power Supply: 12V/1.5A
• Antenna(s): Four High-Performance Internal Antennas
• Dimensions: 199.7 x 148.6 x 67.5 mm
• Wireless Features: “Enable/Disable Wireless Radio, WMM, Wireless Statistics”
• Security: “Wireless Security:
  WPA/WPA2/WPA3 encryptions

  Access Control:
  Parental Controls, White List, Black List

  Firewall Security:
  DoS, SPI Firewall, IP and MAC Address Binding”

• DHCP: “Server, DHCP Client List, Address Reservation”
• Port/NAT Forwarding: “Virtual Server, Port Triggering, UPnP, DMZ”
• VPN Support: “VPN Pass-Through: IPSec, PPTP, L2TP
  VPN Server: PPTP, OpenVPN, IPSec”
• Management: “Local management: WebGUI, Aginet app (for end users)

  Remote management :Aginet ACS, TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers

  Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it)
  Cloud management: TP-Link Aginet Unified Cloud (TAUC)”

• Dynamic DNS: “DynDns, NO-IP”
• USB Application: –
• Additional Features: “Operating Modes: Router, Access Point
  Multi-SSID
  EasyMesh compatible, and support 802.11k/v/r
  Quality of Service: Hardware QoS, Flow Classification
  TX Beamforming
  MU-MIMO
  DL/UL OFDMA
  Airtime Fairness
  IPv4, IPv6″
• Environment: Operating Temperature: 0°C–40°C (32°F –104°F)
  Storage Temperature: -40°C–60°C (-40°F –140°F)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
• Package Contents: WiFi 6 VoIP Router EX520v
  Power Adapter
  RJ45 Ethernet Cable
  RJ11 Phone Cable
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.7100 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
