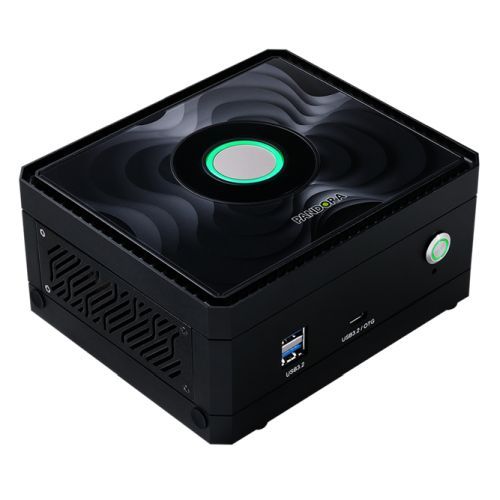

Palit Pandora NVIDIA Jetson Orin NX 16GB Super Mini AI Computer, 8-Core Arm CPU, 16GB DDR5, 128G SSD, 1024-Core Ampere GPU, Ubuntu

Description

Description

Specification

• #Hide#Fully Built / Barebone: Fully Built
• Tower / Small Form Factor: Small Form Factor
• Processor: Arm Cortex-A78AE (8-Core)
• Processor Details: 8-Core v8.2 64-Bit CPU
  2MB L2 + 4MB L3
• Graphics: 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
• #Hide#Processor: Arm Cortex-A78AE
• Memory: 16GB
• Memory Details: 128-bit LPDDR5
  Total 102.4 GB/s bandwidth
• Hard Drive: None
• SSD Drive: 128GB SSD
• Drive Details: M.2 2280 PCIe Gen4
• Optical Drive: None
• Supported Drives: “1 x M.2 2280 PCIe Gen4x2 Slot (Pre-Installed 128GB SSD)
  1 x M.2 2280/3080 PCIe Gen4x4, Support SSD or Video Capture Cards”
• Operating System: Ubuntu
• Front/Top I/O: 1 x HDMI 2.0
  2 x GB LAN DHCP Client
  2 x USB3.2 Gen2 Type-A
  1 x USB3.2 Gen2 Type-C (OTG)
  2 x USB 2.0 Type-A
  1 x Line In (3.5mm Phone Jack)
  1 x Line Out (3.5mm Phone Jack)
• LAN: GB LAN (x2)
• Wireless: “1 x M.2 2230 E Key PCIe Gen4x1+USB2.0 , Support WiFi Module.
  1 x M.2 3042/3052 B Key USB3.2 Gen1, Support 5G/4G Wireless Module”
• Expansion: 1 x Nano SIM Card Slot
  8-Lane MIPI CSI-2

  40 Pin Header:
  1 x I2S
  2 x I2C
  2 x SPI
  1 x UART
  3 x GPIO

  14 Pin Header:
  1 x CAN Bus
  1 x UART with CTS/RTS
  1 x UART for Debug

• Power Unit: DC input:12~36V
• Keyboard and Mouse: No
• Dimensions: 145 x 123 x 66 mm
  Main Board: 115 x 115 mm
• Additional Features: NVIDIA Jetson Orin NX Super Ready
  AI Performance: 157 / 78 TOPS (Sparse / Dense)
  Supports External NVMe
  JetPack: 6.2 or Higher
  Operating Temperature: Standard Version: 0~60°C with Airflow
  Storage Temperature: -20~80°C

  See Overview for more details

• Package Weight: 1.9000 kg
• Package Type: Retail
• Warranty: 1 Year
