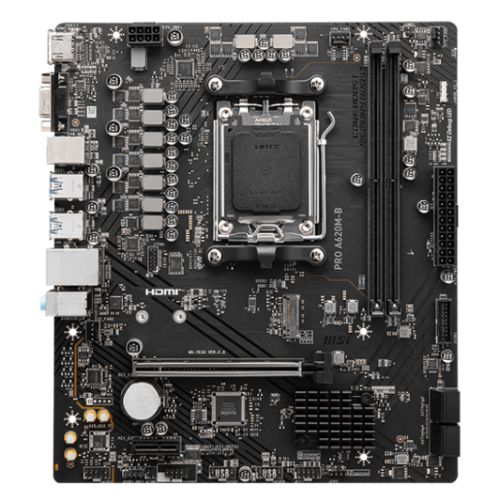

MSI PRO A620M-B, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, 2.5G LAN, 1x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Supports non-ECC, un-buffered memory
  Supports AMD EXPO”
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6800+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2280/2260) – PCIe 4.0 x4
• RAID: “Supports RAID 0, 1 and 10 for SATA storage devices”
• Wireless: –
• LAN: 2.5GB LAN
• Audio: 7.1-Channel High Definition Audio
• USB Ports Supported: Rear:
  4 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  2 x USB 5Gbps Type-A
  4 x USB 2.0

• Back Panel I/O Ports: 4 x USB 5Gbps Type-A
  2 x USB 2.0
  1 x HDMI 2.1
  1 x VGA
  1 x PS/2 Keyboard
  1 x PS/2 Mouse
  1 x RJ-45
  1 x Audio Line In
  1 x Audio Line Out
  1 x Microphone In
• Internal I/O Connectors: 1 x Power (ATX_PWR)
  1 x Power (CPU_PWR)
  1 x CPU Fan
  2 x System Fan
  2 x Front Panel
  1 x Chassis Intrusion
  1 x Front Audio
  1 x Com Port
  1 x Addressable V2 RGB LED
  1 x RGB LED
  1 x TPM pin TPM 2.0
  4 x USB 2.0
• .: 2 x USB 5Gbps Type-A
• Accessories: EU Regulatory Notice
  Quick Installation Guide
  M.2 Screw / Standoff Set
  SATA Cable
  I/O Shield
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
