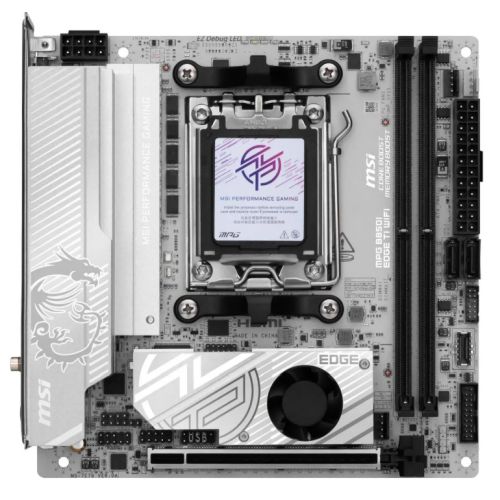

MSI MPG B850I EDGE TI WIFI, AMD B850, AM5, Micro ATX, 2 DDR5, HDMI, Wi-Fi 7, 5G LAN, 2x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD B850
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Supports Non-ECC, Un-buffered memory
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO
  Supports CUDIMM, Clock Driver bypass mode only”
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 10000+MT/s (OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
• PCI/PCI Express: 1 x PCIe 5.0 x16
  *Specifications may vary between CPU types
• Storage: 2 x SATA III
  2 x M.2

  Ryzen 9000 & 7000 Series CPUs:
  M.2_1 (2280) – PCIe 5.0 x4
  M.2_2 (2280) – PCIe 4.0 x4

  Ryzen 8000 Series CPUs:
  M.2_1 (2280) – PCIe 4.0 x4
  M.2_2 (2280) – PCIe 4.0 x4

• RAID: “Supports RAID 0, and 1 for SATA storage devices
  Supports RAID 0, and 1 for M.2 NVMe storage devices”
• Wireless: “Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth 5.4, MLO, 4KQAM”
• LAN: 5GB LAN
• Audio: Realtek®ALC4080 Codec
  7.1-Channel USB High-Performance Audio
• USB Ports Supported: Rear:
  2 x USB 20Gbps Type-C
  3 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps Type-A
  2 x USB 2.0

• Back Panel I/O Ports: 2 x USB 20Gbps Type-C
  3 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  1 x HDMI 2.1
  1 x RJ-45
  1 x Audio Line In
  1 x Audio Line Out
  1 x S/PDIF Optical Out
  2 x SMA Antennas
• Internal I/O Connectors: 1 x Power (ATX_PWR)
  1 x Power (CPU_PWR)
  1 x CPU Fan
  1 x Combo Fan (Pump_Sys Fan)
  1 x System Fan
  1 x EZ Conn-header (JAF_2)
  2 x Front Panel
  1 x Chassis Intrusion
  1 x Front Audio
  1 x Addressable V2 RGB LED
  1 x TPM pin TPM 2.0
  2 x USB 2.0
• .: 2 x USB 5Gbps Type-A
  1 x USB 10Gbps Type-C
• Accessories: EU Regulatory Notice
  Quick Installation Guide
  Cable Sticker
  EZ Wi-Fi Antenna
  SATA Cable
  3 x M.2 Screws
  ARGB Extension Cable
  1 to 3 EZ Conn-Cable (v2)
  EZ Front Panel Cable
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
