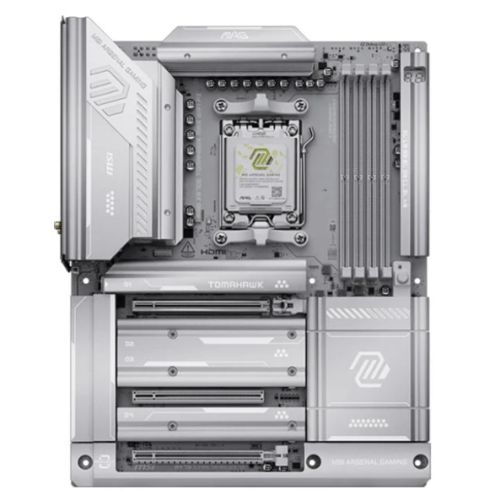

MSI MAG X870E TOMAHAWK MAX WIFI PZ, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, 4x M.2, Back-Connect Design

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X870E
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Supports Non-ECC, Un-buffered memory
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO
  Supports CUDIMM, Clock Driver bypass mode only”
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8400+(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x USB4 (40Gbps) support USB Type-C display outputs
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
  *Specifications may vary between CPU types
• Storage: 4 x SATA III
  4 x M.2

  Ryzen 9000 & 7000 Series CPUs:
  M.2_1 (22110/2280) – PCIe 5.0 x4
  M.2_2 (2280/2260) – PCIe 5.0 x4

  Ryzen 8000 Series CPUs:
  M.2_1 (22110/2280) – PCIe 4.0 x4
  M.2_2 (2280/2260) – PCIe 4.0 x4*

  Chipset:
  M.2_3 (2280/2260) – PCIe 4.0 x4
  M.2_4 (2280/2260) – PCIe 4.0 x4

  *The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series CPUs

• RAID: “Supports RAID 0, 1 and 10 for SATA storage devices
  Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices

  *RAID 5 configuration is only supported by Ryzen 9000 series CPUs.
  *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series CPUs”

• Wireless: “Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth 5.4, MLO, 4KQAM”
• LAN: 5GB LAN
• Audio: Realtek ALC4080 Codec
  7.1-Channel USB High Performance Audio
• USB Ports Supported: Rear:
  2 x USB 40Gbps Type-C
  1 x USB 10Gbps Type-C
  2 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C
  4 x USB 5Gbps Type-A
  4 x USB 2.0

• Back Panel I/O Ports: 2 x USB 40Gbps Type-C
  1 x USB 10Gbps Type-C
  2 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x Clear CMOS Button
  1 x 5G LAN
  2 x Wi-Fi / Bluetooth
  2 x Audio Connectors
  1 x Flash BIOS Button
  1 x HDMI
  1 x Optical S/PDIF Out
• Internal I/O Connectors: 1 x Power (ATX_PWR)
  2 x Power (CPU_PWR)
  1 x Power (PCIE_PWR 8pin)
  1 x CPU Fan
  1 x Combo Fan (Pump_Sys Fan)
  6 x System Fan
  1 x EZ Conn-header (JAF_2)
  2 x Front Panel
  1 x Chassis Intrusion
  1 x Front Audio
  3 x Addressable V2 RGB LED
  1 x RGB LED
• .: 1 x TPM pin TPM 2.0
  2 x Direct OC Jumper
  4 x USB 2.0
  4 x USB 5Gbps Type-A
  1 x USB 20Gbps Type-C
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#Back-Connect Support: Yes (Back-Connect)
