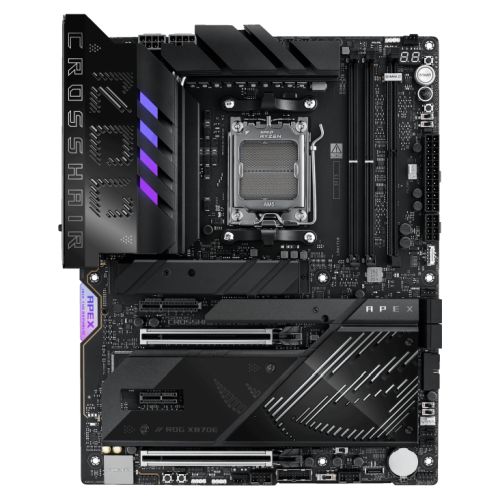

Asus ROG CROSSHAIR X870E APEX, AMD X870E, AM5, ATX, 2 DDR5, 2 USB4, Wi-Fi 7, 5G LAN, PD 60W, RGB, 5x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X870E
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory*
  Supports AMD EXPO
  ASUS Enhanced Memory Profile

  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.”

• RAM Slots: 2 x DIMM
• RAM Speeds: 8200+MT/s(OC) with Ryzen 9000 Series CPUs
  8600+MT/s(OC) with Ryzen 8000 Series CPUs
  8000+MT/s(OC) with Ryzen 7000 Series CPUs
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 2 x USB4 (40Gbps) support USB Type-C display outputs
• PCI/PCI Express: “9000 & 7000 CPUs:
  2 x PCIe 5.0 x16 (x16 or x8/x8 or x8/x4/x4 modes)

  8700 & 8600 & 8400 CPUs:
  2 x PCIe 4.0 x16 (PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)

  8500 & 8300:
  2 x PCIe 4.0 x16 (PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)

  AMD X870E Chipset:
  1 x PCIe 4.0 x4
  1 x PCIe 3.0 x1″

• Storage: 4 x SATA III
  5 x M.2

  Ryzen 9000 & 8000 & 7000 CPUs:
  M.2_1 (2242/2260/2280) – PCIe 5.0 x4
  M.2_2 (2242/2260/2280) – PCIe 5.0 x4
  M.2_3 (2242/2260/2280) – PCIe 5.0 x4

  Ryzen 8000 CPUs:
  M.2_1 (2242/2260/2280) – PCIe 4.0 x4
  M.2_2 (2242/2260/2280) – not supported
  M.2_3 (2242/2260/2280) – not supported

  X870E Chipset:
  DIMM.2_1 (2230/2242/2260/2280/22110) – PCIe 4.0 x4
  DIMM.2_2 (2230/2242/2260/2280/22110) – PCIe 4.0 x4

• RAID: AMD RAIDXpert2 Technology:
  Ryzen 9000 Series CPUs: RAID 0/1/5/10
  Ryzen 8000 Series CPUs: RAID 0/1
  Ryzen 7000 Series CPUs: RAID 0/1/10
• Wireless: “Wi-Fi 7
  2×2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  Bluetooth v5.4″
• LAN: 5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: Rear:
  2 x USB4 (40Gbps) Type-C
  6 x USB 10Gbps (5 Type-A + 1 Type-C)
  2 x USB 5Gbps Type-A

  Front:
  1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
  1 x USB 20Gbps Type-C
  4 x USB 5Gbps
  4 x USB 2.0

• Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
  6 x USB 10Gbps (5 Type-A + 1 Type-C)
  2 x USB 5Gbps Type-A
  1 x Wi-Fi module
  1 x Realtek 5Gb Ethernet
  1 x PS/2 keyboard/mouse combo
  2 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  2 x 4-pin Chassis Fan
  2 x 4-pin Full Speed Fan
  1 x W_PUMP+
  1 x Extra Flow Fan
  1 x 24-pin Main
  2 x 8-pin +12V CPU
  1 x 8-pin PCIe
  3 x M.2 (Key M)
• .: 4 x SATA 6Gb/s
  2 x USB 20Gbps Type-C
  2 x USB 5Gbps
  2 x USB 2.0
  1 x 80 Light Bar jumper
  3 x Addressable Gen2
  1 x Alteration PCIe mode switch
  2 x BCLK button
  1 x BIOS Switch button
  1 x FlexKey button
• .: 1 x Front Panel Audio
  1 x LN2 Mode jumper
  1 x Pause switch
  12 x ProbeIt Measurement Points
  1 x ReTry button
  2 x RSVD switches
  1 x RSVD_4
  1 x Safe Boot button
  1 x Slow Mode switch
  1 x Start button
  1 x 10-1 pin System Panel
  1 x Thermal Sensor
• Accessories: 1 x ROG Memory Fan Kit
  1 x ASUS WiFi Q-Antenna
  1 x Q-connector
  3 x M.2 Q-Slide package
  3 x M.2 rubber package
  1 x ROG stickers
  1 x ROG thank you card
  1 x ROG Bottle Opener
  1 x USB drive with utilities and drivers
  1 x Quick start guide
• .: ROG DIMM.2 with Heatsink:
  1 x ROG DIMM.2 with heatsink
  1 x M.2 pad for ROG DIMM.2
  2 x M.2 screw package for ROG DIMM.2
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 5.6610 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
