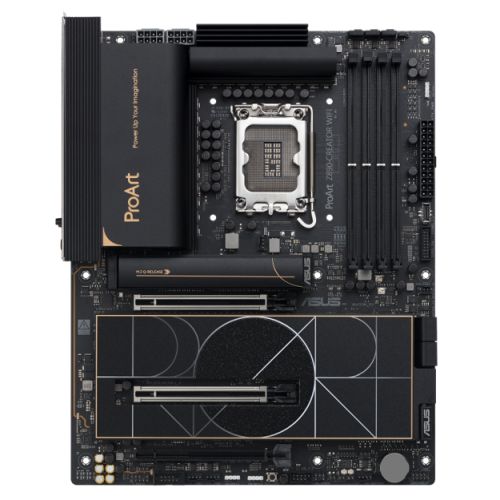

Asus PROART Z890-CREATOR WIFI, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB5, Wi-Fi 7, 10G & 2.5G LAN, 5x M.2, Creator Hub

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1851
• Chipset: Intel Z890
• #Hide#DDR Type: DDR5
• CPU Support: Support Intel Core Ultra Processors (Series 2)
  Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  Supports Intel XMP
  ASUS Enhanced Memory Profile III
  DIMM Fit
  Supports DIMM Flex

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
  “

• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 9066+MT/s (OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Thunderbolt 5 support DisplayPort and Thunderbolt video outputs
  1 x Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
• PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
  2 x PCIe 5.0 x16 (supports x16 or x8/x8 modes)

  Intel Z890 Chipset*:
  1 x PCIe 4.0 x16 (supports x4 mode)

• Storage: 4 x SATA III
  5 x M.2

  Intel Core Ultra CPUs (Series 2):
  M.2_1 (2242/2260/2280/22110) – PCIe 5.0 x4
  M.2_2 (2242/2260/2280) – PCIe 4.0 x4

  Intel Z890 Chipset:
  M.2_3 (2242/2260/2280) – PCIe 4.0 x4
  M.2_4 (2242/2260/2280) – PCIe 4.0 x4
  M.2_5 (2242/2260/2280) – PCIe 4.0 x4 & SATA

• RAID: “Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5”
• Wireless: “Wi-Fi 7
  2×2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  Bluetooth v5.4″
• LAN: 10GB LAN & 2.5GB LAN
• Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x Thunderbolt 5 (USB Type-C)
  1 x Thunderbolt 4 (USB Type-C
  6 x USB 10Gbps Type-A
  1 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C
  2 x USB 5Gbps
  2 x USB 2.0

• Back Panel I/O Ports: 2 x Thunderbolt 5 (USB Type-C)
  1 x Thunderbolt 4 (USB Type-C
  6 x USB 10Gbps Type-A
  1 x USB 2.0
  1 x DisplayPort (Input only)
  1 x HDMI
  1 x Wi-Fi module
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  2 x Gold-plated audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  5 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V CPU
  5 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  1 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Clear CMOS button
  1 x COM Port
  1 x CPU Over voltage jumper
  1 x Chassis Intrusion
  1 x Front Panel Audio
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin Front System Panel
  1 x Thermal Sensor
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS WiFi Q-Antenna
  1 x Q-connector
  2 x M.2 Q-Latch packages
  2 x M.2 rubber packages
  1 x ProArt accessory bag
  1 x ACC Express activation key card
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.7710 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
