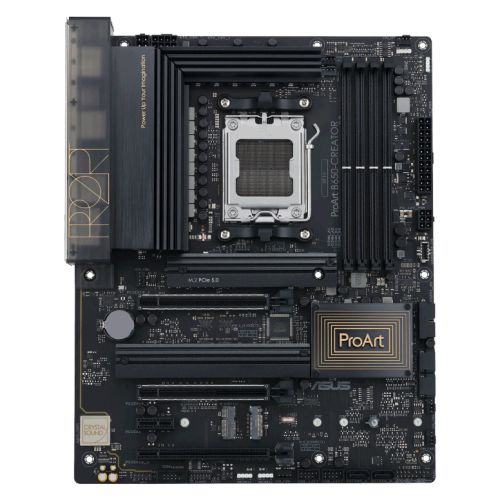

Asus PROART B650-CREATOR, AMD B650, AM5, ATX, 4 DDR5, HDMI, USB-C, 2.5G & GB LAN, 3x M.2, Creator Hub

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD B650
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  ECC & Non-ECC, Un-buffered Memory*
  Supports AMD EXPO
  OptiMem II

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function”

• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7600+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x USB Type-C supports DisplayPort output
• PCI/PCI Express: “Ryzen 9000, 8000 & 7000 Series CPUs:
  2 x PCIe 4.0 x16 (support x16 or x8/x8 modes)

  AMD B650 Chipset:
  1 x PCIe 4.0 x16 (supports x4 mode)
  1 x PCIe 4.0 x1″

• Storage: 4 x SATA III
  3 x M.2

  Ryzen 9000 & 7000 Series CPUs:
  M.2_1 (2242/2260/2280) – PCIe 5.0 x4
  M.2_2 (2242/2260/2280/22110) – PCIe 4.0 x4

  Ryzen 8000 Series CPUs:
  M.2_1 (2242/2260/2280) – PCIe 4.0 x4
  M.2_2 (2242/2260/2280/22110) – PCIe 4.0 x4/x2

  AMD B650 Chipset:
  M.2_3 (2242/2260/2280/22110) – PCIe 4.0 x4

• RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: –
• LAN: 2.5GB LAN & GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: “Rear:
  1 x USB 10Gbps Type-C (shared with DP graphic output)
  4 x USB 10Gbps (3 Type-A, 1 Type-C)
  2 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
  2 x USB 5Gbps
  4 x USB 2.0″

• Back Panel I/O Ports: “1 x USB 10Gbps Type-C (shared with DP graphic output)
  4 x USB 10Gbps (3 Type-A, 1 Type-C)
  2 x USB 2.0
  1 x DisplayPort (Input only)
  1 x HDMI port
  1 x Realtek 2.5Gb Ethernet
  1 x Realtek 1Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button”
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  1 x 6-pin PCIe
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen 2×2 Type-C
  1 x USB 3.2 Gen1
• .: 2 x USB 2.0
  3 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x M.2 (Key E)
  1 x 20-5 pin System Panel
  1 x Thermal Sensor
• Accessories: 1 x DisplayPort cable
  2 x SATA 6Gb/s cables
  1 x Q-connector
  1 x Rubber Packages for M.2
  1 x Screw packages for M.2 SSD
  1 x Screw package for M.2 Key E
  1 x ProArt ruler
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
