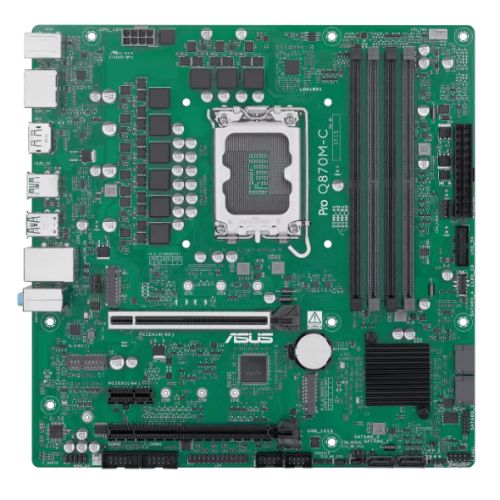

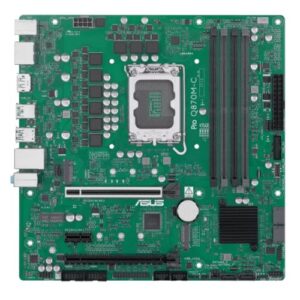

Asus PRO Q870M-C-CSM – Corporate Stable Model, Intel Q870, 1851, Micro ATX, 4 DDR5, HDMI, 2 DP, GB LAN, 2x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1851
• Chipset: Intel Q870
• #Hide#DDR Type: DDR5
• CPU Support: Supports Intel Core Ultra Processors (Series 2)
• RAM Technology: “DDR5 (Dual Channel)
  Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  DIMM Fit
  Supports Intel XMP

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function”

• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6400 MT/s
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x DisplayPort
• PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
  1 x PCIe 5.0 x16

  Intel B860 Chipset:
  1 x PCIe 4.0 x16 (supports x4 mode)
  1 x PCIe 4.0 x1

• Storage: 4 x SATA III
  2 x M.2

  Intel Core Ultra CPUs (Series 2):
  M.2_1 (2242/2260/2280) – PCIe 5.0 x4

  Intel B860 Chipset:
  M.2_2 (2242/2260/2280) – PCIe 4.0 x4

• RAID: “Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10”
• Wireless: –
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 10Gbps Type-C
  2 x USB 10Gbps Type-A
  1 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0

• Back Panel I/O Ports: 1 x USB 10Gbps Type-C
  2 x USB 10Gbps Type-A
  1 x USB 5Gbps Type-A
  2 x USB 2.0
  2 x DisplayPort
  1 x HDMI
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x Intel 1Gb Ethernet
  3 x Audio jacks
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V CPU
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 10Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  1 x Clear CMOS
  1 x Chassis Intrude
  2 x COM Port
• .: 1 x Front Panel Audio
  1 x COM debug
  1 x DIS ME CPU
  1 x DIS ME PCH
  1 x LPT
  1 x Mono-Out Audio (with Amp IC)
  1 x M.2 (Key E)
  1 x Speaker
  1 x 10-1 pin Front Panel System
• Accessories: 2 x SATA 6Gb/s cables
  1 x Screw package for M.2 SSD
  1 x I/O Shield
  1 x M.2 Key E screw package
  1 x ACC Express Activation Key Card
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8890 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
