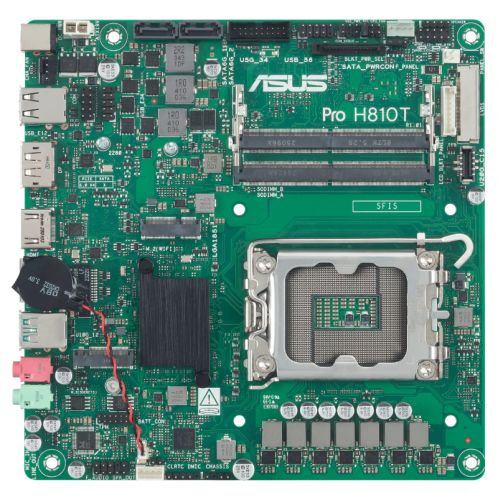

Asus PRO H810T-CSM – Corporate Stable Model, Intel H810, 1851, Thin Mini ITX, 2 DDR5 SO-DIMM, HDMI, DP, LVDS, GB LAN, 19v DC in, 1x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Thin Mini ITX
• Socket: Intel 1851
• Chipset: Intel H810
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 SO-DIMM (Dual Channel)
  Non-ECC, Un-buffered DIMM*

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function”

• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6400MT/s (OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
  1 x LVDS connector
• PCI/PCI Express: –
• Storage: 2 x SATA III
  1 x M.2

  M.2_1 (2280) – PCIe 5.0 x4

• Wireless: –
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB 10Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0

• Back Panel I/O Ports: 2 x USB 10Gbps Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  2 x Audio jacks
  1 x DC power connector (supports 19V)
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 2-pin +19V
  1 x SATA power
  1 x M.2 (Key M)
  2 x SATA 6Gb/s
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  1 x Stereo Speaker
  1 x DMIC
  1 x Backlight Inverter Voltage Selection
• .: 1 x FPD Brightness
  1 x Panel Voltage Selection
  1 x Panel Off
  1 x Clear CMOS
  1 x Chassis Intrusion
  1 x COM Port
  1 x Front Panel Audio
  1 x COM Debug
  1 x LVDS
  1 x M.2 (Key E)
• .: 1 x Speaker
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin Front Panel System
• Accessories: 2 x SATA 6Gb/s cables
  1 x SATA power cable
  2 x I/O shields
  1 x ACC Express activation key card
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7400 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
