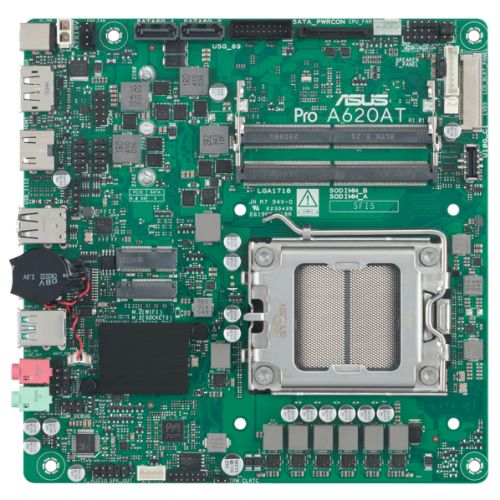

Asus PRO A620AT-CSM – Corporate Stable Model, AMD A620A, AM5, Thin Mini ITX, 2 DDR5, HDMI, DP, LVDS, 19v DC in, 1x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Thin Mini ITX
• Socket: AMD AM5
• Chipset: AMD A620A
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 SODIMM (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory*
  ASUS Enhanced Memory Profile (AEMP)

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function”

• RAM Slots: 2 x SODIMM
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
  1 x LVDS
• Storage: 2 x SATA III
  1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
• Wireless: –
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB 10Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  5 x USB 2.0

• Back Panel I/O Ports: 2 x USB 10Gbps Type-A
  2 x USB 2.0 x Type-A
  1 x DisplayPort
  1 x HDMI
  1 x RTL8111EPV-CG Ethernet (DASH LAN)
  2 x Audio jacks
  1 x DC power connector (supports 19V)
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 2-pin +19V
  1 x SATA power
  1 x M.2 (Key M)
  2 x SATA 6Gb/s
  1 x USB 10Gbps USB Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  1 x USB 2.0
  1 x Stereo Speaker
  1 x DMIC
• .: 1 x Backlight Inverter Voltage Selection
  1 x FPD Brightness
  1 x Panel Voltage Selection
  1 x Panel Off
  1 x Clear CMOS
  1 x Chassis Intrusion
  1 x COM Port
  1 x Front Panel Audio
  1 x COM Debug
  1 x LVDS
• .: 1 x M.2 slot (Key E)
  1 x Speaker
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin Front Panel System
• Accessories: 2 x SATA 6Gb/s cables
  1 x SATA power cable
  2 x I/O shields
  1 x ACC Express activation key card
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
