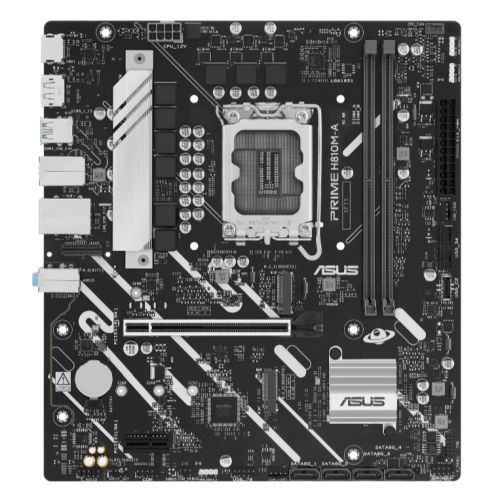

Asus PRIME H810M-A-CSM – Corporate Stable Model, Intel H810, 1851, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 2x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1851
• Chipset: Intel H810
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  DIMM Fit
  Supports Intel XMP
  ASUS Enhanced Memory Profile III

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function”

• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6400MT/s (OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
  1 x PCIe 4.0 x16

  Intel B860 Chipset:
  1 x PCIe 4.0 x1

• Storage: 4 x SATA III
  2 x M.2

  M.2_1 (2280) – PCIe 4.0 x4
  M.2_2 (2242/2260/2280) – PCIe 4.0 x2

• Wireless: –
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB 10Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 5Gbps Type-C
  2 x USB 5Gbps
  2 x USB 2.0

• Back Panel I/O Ports: 2 x USB 10Gbps Type-A
  4 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Vertical M.2 (Key E)
  1 x Intel 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 keyboard/mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V CPU
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 5Gbps Type-C
  1 x USB 5Gbps
  1 x USB 2.0
  3 x Addressable Gen2
  1 x Clear CMOS
  1 x COM Port
• .: 1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin Front Panel System
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O shield
  1 x Screw package for M.2 SSD
  1 x ACC Express activation key card
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7800 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
