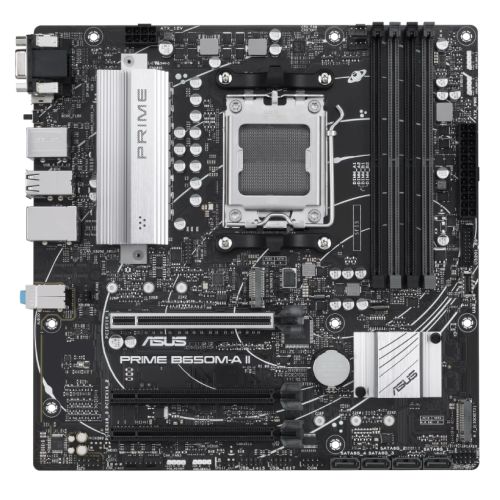

Asus PRIME B650M-A II-CSM – Corporate Stable Model, AMD B650, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, 2x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD B650
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory
  Supports AMD EXPO
  OptiMem II
  “
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7600+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  2 x PCIe 4.0 x16 (support x1 mode)
  *Specifications may vary between CPU types
• Storage: 4 x SATA III
  2 x M.2

  Ryzen 9000 & 7000 Series CPUs:
  M.2_1 (242/2260/2280) – PCIe 5.0 x4
  M.2_2 (2242/2260/2280) – PCIe 4.0 x4

  Ryzen 8000 Series CPUs:
  M.2_1 (2242/2260/2280) – PCIe 4.0 x4
  M.2_2 (2242/2260/2280) – PCIe 4.0 x4

• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• Wireless: –
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB 3.2 Gen2 Type-A
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0

  Front:
  1 x USB 3.2 Gen1 USB Type-C
  2 x USB 3.2 Gen1
  4 x USB 2.0

• Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
  1 x DisplayPort
  1 x VGA
  1 x HDMI
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
  1 x Aura RGB
• .: 1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x Screw Package for M.2 SSD
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
