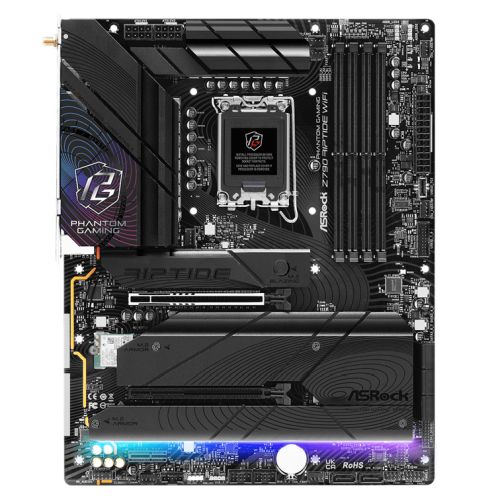

Asrock Z790 RIPTIDE WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 7, 2.5G LAN, PCIe5, RGB, 5x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5, Dual Channel
  Supports Intel Extreme Memory Profile (XMP) 3.0″
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
  1 x eDP 1.4
• PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
  1 x PCIe 4.0 x16 (supports x4 mode)
  1 x PCIe 3.0 x1
• Storage: 8 x SATA III
  1 x M.2 (2280) – PCIe 5.0 x4
  1 x M.2 (2260/2280) – PCIe 4.0 x4
  1 x M.2 (2260/2280) – PCIe 4.0 x4
  1 x M.2 (2260/2280) – PCIe 4.0 x4
  1 x M.2 (2260/2280) – PCIe 4.0 x4
• RAID: “Supports RAID 0, 1, 5 and 10 for SATA storage devices
  Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices”
• Wireless: 802.11be 2×2 Wi-Fi 7 Module
  Supports IEEE 802.11a/b/g/n/ac/ax/be
  Supports 2.4GHz/5GHz/6GHz frequency band
  Supports 320MHz channel bandwidth with 6GHz frequency band
  1 antenna – 2 (Transmit) x 2 (Receive) diversity technology
  Supports Bluetooth 5.4
  Supports MU-MIMO
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• USB Ports Supported: Rear:
  2 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen1 Type-C
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0

  Front:
  1 x USB 3.2 Gen2x2 Type-C
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0

• Back Panel I/O Ports: 2 x Antenna Mounting Points
  1 x HDMI
  1 x DisplayPort 1.4
  2 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen1 Type-C
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x eDP Signal
  1 x Thermistor Cable
  1 x SPI TPM
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  1 x Chassis Fan
  4 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  2 x 8 pin 12V
• .: 1 x Front Panel Audio
  1 x Thunderbolt AIC
  2 x USB 2.0
  1 x USB 3.2 Gen1
  1 x Front Panel Type-C USB 3.2 Gen2x2
• Accessories: 1 x User Manual
  2 x SATA Data Cables
  1 x ASRock WiFi 2.4/5/6 GHz Antenna
  1 x ARGB Splitter Cable
  1 x Thermistor Cable
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.7000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
