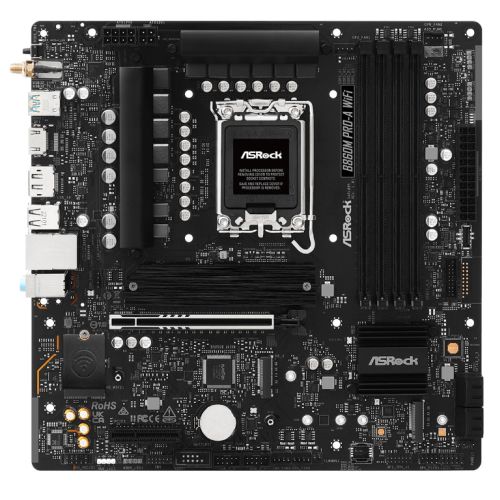

Asrock B860M PRO-A WIFI, Intel B860, 1851, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 3x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1851
• Chipset: Intel B860
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
  Supports XMP 3.0″
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8666+(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
  1 x PCIe 5.0 x16

  Intel B860 Chipset:
  1 x PCIe 4.0 x4

• Storage: 4 x SATA III
  3 x M.2

  Intel Core Ultra CPUs (Series 2):
  M.2_1 (2280) – PCIe 5.0 x4

  Intel B860 Chipset:
  M.2_2 (2230/2242/2260/2280) – PCIe 4.0 x4
  M.2_3 (2280) – PCIe 4.0 x4

• RAID: “Supports RAID 0, 1, 5 and 10 for SATA storage devices”
• Wireless: 802.11axe Wi-Fi 6E Module
  Supports IEEE 802.11a/b/g/n/ac/ax/axe
  Supports Dual-Band 2×2 with extended 6GHz band support
  2 antennas to support 2 (Transmit) x 2 (Receive) diversity tech
  Supports Bluetooth 5.3
  Supports MU-MIMO
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: Rear:
  1 x USB 20Gbps Type-C
  3 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 5Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0

• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen2x2 Type-C
  3 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  2 x CPU Fan
  3 x Chassis Fan
  1 x AIO Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Panel Audio
  2 x USB 2.0
• .: 1 x USB 3.2 Gen1
  1 x Front Panel Type-C USB 3.2 Gen1
• Accessories: 1 x I/O Shield
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5/6 GHz Antennas
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
