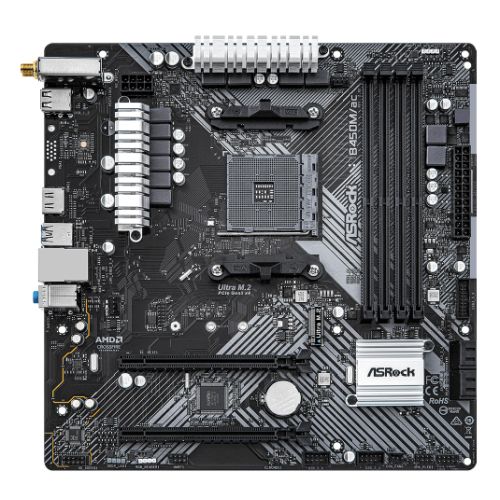

Asrock B450M/AC R2.0, AMD B450, AM4, Micro ATX, 4 DDR4, HDMI, GB LAN, AC Wi-Fi, 1x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD B450
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
  Supports Extreme Memory Profile (XMP) memory modules
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 3200 MHz
• Maximum Memory: 128GB
• Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
• Graphics Ports: 1 x HDMI
• PCI/PCI Express: 1 x PCIe 3.0 x16
  1 x PCIe 2.0 x16
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) – PCIe 3.0 x4
• RAID: “SATA RAID 0, 1, 10 “
• Wireless: Intel 802.11ac WiFi Module
  Supports IEEE 802.11a/b/g/n/ac
  Supports Dual-Band (2.4/5 GHz)
  Supports wireless connections up to 433Mbps
  Supports Bluetooth 4.2 / 3.0 + High speed class II
• LAN: GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)
• USB Ports Supported: Rear:
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0

  Front:
  4 x USB 2.0
  2 x USB 3.2 Gen1

• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  2 x USB 2.0
  4 x USB 3.2 Gen1
  1 x RJ-45 LAN Port
  HD Audio Jacks
• Internal I/O Connectors: 1 x Chassis Intrusion
  1 x Power LED and Speaker
  1 x RGB LED
  1 x Addressable LED
  1 x AMD Fan LED
  1 x CPU Fan
  1 x Chassis Fan
  1 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
• .: 1 x AMD LED Fan USB
  2 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: “Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5 GHz Antennas
  1 x Screw for M.2 Socket”
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1600 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
