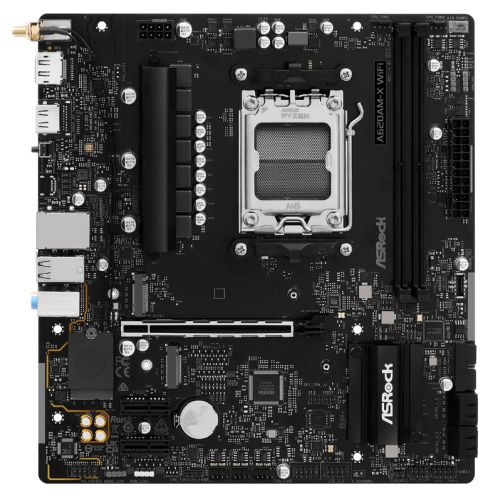

Asrock A620AM-X WIFI, AMD A620A, AM5, Micro ATX, 2 DDR5, HDMI, DP, AC Wi-Fi, 2.5G LAN, 2x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620A
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Supports ECC/non-ECC, un-buffered memory
  Supports XMP and EXPO”
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: “1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*
  2 x PCIe 3.0 x1 (PCIE2 and PCIE3)

  *PCIE1 will run at Gen4x16 with 9000 and 7000 series CPUs, Gen4x8 with 8000 (Phoenix 1) series CPUs and Gen4x4 with 8000 (Phoenix 2) series CPUs.”

• Storage: “4 x SATA III
  2 x M.2

  M.2_1 (2280) – PCIe 4.0 x4
  M.2_2 (2280) – PCIe 4.0 x4*

  *M2_2 will run at Gen4x4 with 9000 and 7000 series CPUs, Gen4x4 with 8000 (Phoenix 1) series CPUs and Gen4x2 with 8000 (Phoenix 2) series CPUs.”

• RAID: “Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices”
• Wireless: 802.11ac Wi-Fi Module
  Supports IEEE 802.11a/b/g/n/ac
  Supports Dual-Band (2.4/5 GHz)
  Supports high speed wireless connections up to 433Mbps
  Supports Bluetooth 5.0
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: Rear:
  1 x USB 5Gbps Type-C
  3 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 5Gbps Type-C
  2 x USB 5Gbps Type-A
  4 x USB 2.0

• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen1 Type-C
  3 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x RJ-45 LAN
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  2 x CPU Fan
  3 x Chassis Fan
  1 x AIO Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• .: 1 x Front Panel Type-C USB 3.2 Gen1
• Accessories: 1 x I/O Shield
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5 GHz Antennas
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.2010 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
