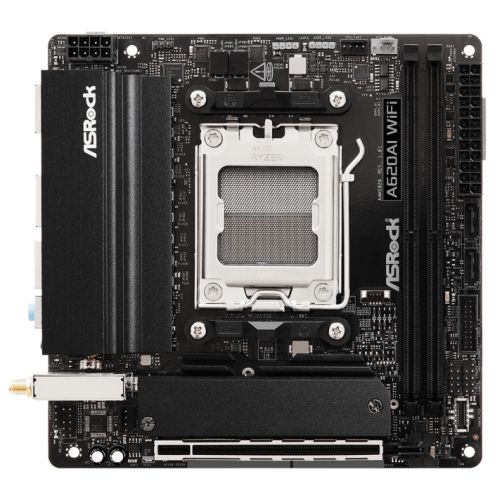

Asrock A620AI WIFI, AMD A620A, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G & GB LAN, 2x M.2

Description

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: AMD AM5
• Chipset: AMD A620A
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: “DDR5 (Dual Channel)
  Supports ECC/non-ECC, un-buffered memory
  Supports XMP and EXPO”
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 8200+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
• PCI/PCI Express: “1 x PCIe 4.0 x16 (supports x16 mode)*

  *will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.”

• Storage: 2 x SATA III
  2 x M.2

  M.2_1 (2280) – PCIe 4.0 x4
  M.2_2 (2280) – SATA & PCIe 3.0 x4

• RAID: “Supports RAID 0 and RAID 1 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices”
• Wireless: 802.11ax Wi-Fi 6E Module
  Supports IEEE 802.11a/b/g/n/ac/axe
  Supports Dual-Band 2×2 with ext 6GHz band support
  2 antennas – 2 (Transmit) x 2 (Receive) diversity tech
  Supports Bluetooth 5.2 + High speed class II
  Supports MU-MIMO
• LAN: 2.5GB LAN & GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: Rear:
  1 x USB 10Gbps Type-C
  1 x USB 10Gbps Type-A
  1 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 5Gbps Type-C
  2 x USB 5Gbps Type-A
  2 x USB 2.0

• Back Panel I/O Ports: 2 x Antenna
  1 x HDMI
  2 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x RJ-45 LAN
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 2 x Addressable LED
  1 x CPU Fan
  1 x Chassis Fan
  1 x AIO Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen1
• Accessories: 1 x I/O Shield
  2 x SATA Data Cables
  2 x ASRock WiFi 2.4/5/6 GHz Antennas
  2 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9500 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
